ENGIE Laborelec owns and operates a fleet of ground-based LiDARs which are available for rent for wind resource assessment campaigns. LiDARs have become the most cost-effective way to measure the wind resource, and are now well accepted by industry and banks. The LiDARs operated by ENGIE Laborelec are fully autonomous. They have an internal power supply unit composed of methanol fuel cells, PV panels and batteries. All our LiDARs are equipped with a 3G modem for remote monitoring and theft protection.

Flexibility is key

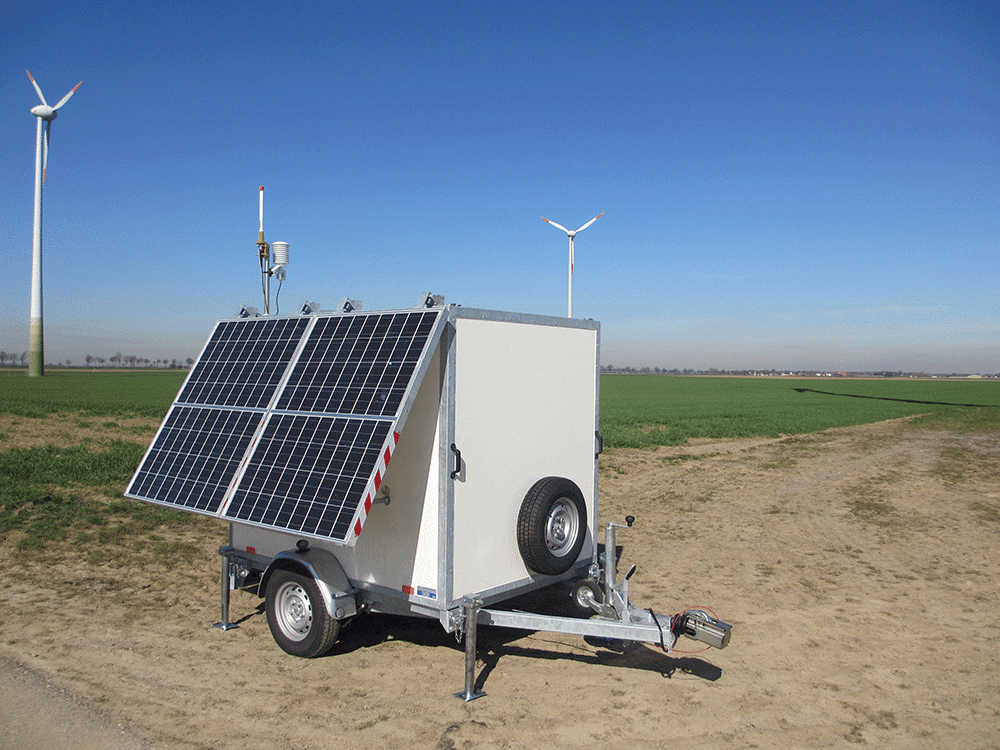

Our LiDARs fit into a single fully integrated trailer. It includes everything needed in a resource assessment campaign all packed tightly together: the LiDAR, the power supply, the weather station for air density calculations, data acquisition and of course 3G connection for remote monitoring and theft alarm. The trailer allows to reduce deployment cost and makes transport easier than ever. Making the system ready for measurement takes less than one hour after arrival on site. The flexibility allows the LiDAR to be moved around the site on a regular basis for better site assessment in a complex terrain.

Clear and transparant deliverable

The deliverable of the measurement campaign is the raw data in csv-format containing the time-series data of 10-minute average wind speed at the selected heights. Along with the raw data comes a campaign report describing the measured Weibull distribution, data availability, and a log of the main events which occurred during the measurement campaign.

Carefree service provided by ENGIE Laborelec

ENGIE Laborelec takes care of everything during your measurement campaign: transport, deployment, remote monitoring, possible interventions and repairs.

Key benefits of trailer-mounted lidars

  • Fully autonomous: no external power supply needed
  • Easy deployment: installation is done in one hour
  • Cost effective: a LiDAR campaign costs a fraction of the price of a met mast
  • No permitting needed
  • Higher measuring heights compared to met mast
  • Fully flexible: can be moved to different locations within a prospected area

The typical Weibull distribution, centerpiece of the selection process of a wind turbine.

Lidar models at ENGIE Laborelec

Vaisala windcube V2+

  • Pulsed waved LiDAR measuring between 40m and 200m
  • Mounted in trailer
  • Powered by EFOY fuel cells, PV and batteries
  • Complex Flow Recognition (CFR)
  • Integrated weather station

Vaisala windcube V1

  • Pulsed wave LiDAR measuring between 40m and 200m
  • Optionally powered by EFOY fuel cells, PV and batteries (external electrical cabinet)
  • Optional weather station
